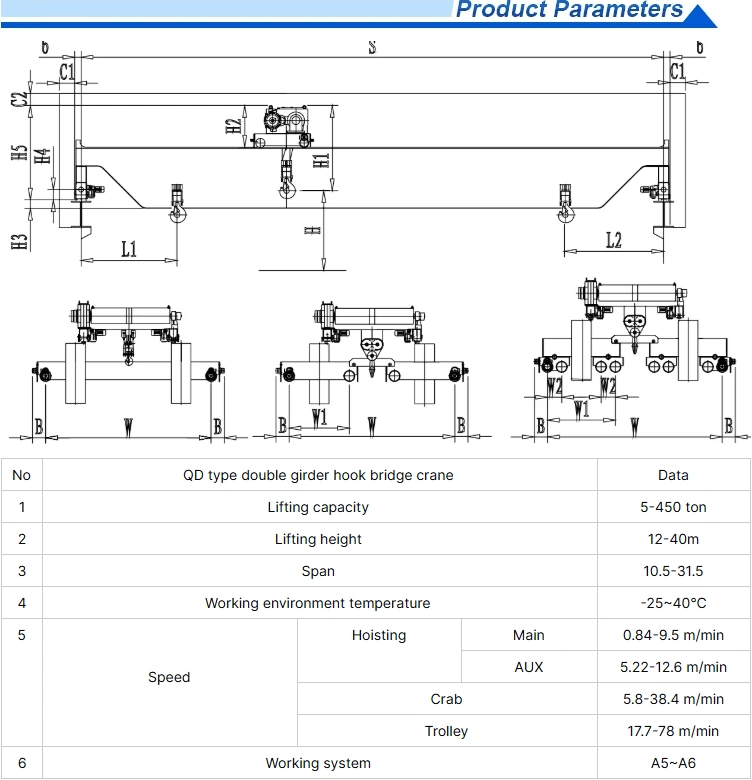

QD Hook Double Girder Overhead Crane – For Heavy Lifting in All Industries

The QD Hook Double Girder Overhead Crane is built for moving heavy loads in many work environments. It works well in factories, warehouses, ports, and power plants. This crane is safe, strong, and easy to control. It can be used for daily operations, even under tough conditions.

Main Applications

1. Manufacturing and Factories

• Machine shops: Lifting machines, molds, and materials.

• Auto plants: Moving engines and frames.

• Steel works: Handling beams, coils, and metal plates.




2. Warehousing and Logistics

• Freight yards: Loading and unloading pallets and containers.

• Storage centers: Moving bulk items and packed goods.




3. Mining and Heavy Industry

• Mining sites: Lifting rocks, ores, and mining tools.

• Power plants: Handling coal, turbines, and parts.




4. Construction and Shipbuilding

• Building sites: Moving concrete, steel beams, and large pieces.

• Shipyards: Assembling ship parts and heavy sections.




5. Material Handling Options

• With grab: For sand, gravel, and grain.

• With magnet: For steel plates and scrap metal.

Ideal Working Conditions

• Temperature: -10°C to +40°C

• Humidity: ≤ 85%

• Not for: Explosive, flammable, or corrosive environments.

• Not for: Outdoor use without custom protection.

Why Choose This Crane?

• Custom Options: Hook, grab, or magnet depending on your material.

• Smooth Operation: Inverter drive ensures stable and quiet movement.

• High Safety: Equipped with overload, lift/travel limits, gate locks, and alarms.

• Strong in Harsh Conditions:
  Used in port warehouses (1# and 2#) for loading mixed cargo 330 days/year in 3 shifts.
  Anti-corrosion coating (Sa2.5 grade), strong paint layers, and seismic rating of 6 make it ready for coastal environments.

Safety Before Use

• Check hook, wire rope, brakes, and safety devices before starting.

• Make sure no one is on the bridge or rail before turning on power.

• Lockout-tagout must be removed before use.

Safe Working Rules

• Test brake by lifting load 0.5m off the ground before full lift.

• Sound horn when lifting/lowering, starting trolley, or near people/other cranes.

• Follow standard signals.

• In case of power failure, stop all controls and reset after checking.

• Do not reverse movement to stop the crane. Always stop first, then change direction.

• When using both hooks, move them one at a time if at similar height.

• Never lift two objects with two hooks at once.

• Do not adjust brakes while under load.

• Do not rely on limit switches for normal stops.

• Always inspect and follow the “Ten No-Lift Rules”:

Ten No-Lift Rules

1. No clear signal or mixed signals.

2. Load exceeds crane’s rated weight.

3. Load not secured or hook not used properly.

4. Someone on the load or extra items on it.

5. Brake or safety parts not working.

6. Processing while crane is holding load.

7. Slant or side pulling.

8. Explosive items.

9. Items buried underground.

10. Sharp-edge loads without protection.

After Work

• Raise the hook, park crane and trolley in proper place.

• Set all controls to "zero", turn off power.

• Do daily maintenance and complete shift handover.

Notes for Usage

• Only for indoor use in factories, assembly shops, and warehouses.

• Not suitable for explosive or corrosive environments.

• Do not carry loads over people.

• Never let the hook hang lower than one person’s height.

• Never use crane to pull buried objects.

• Never stop crane using reverse power except during emergency.

• Always use warning sound before operation.

• Always test brake before lifting heavy loads.

• When leaving, stop crane, clear hook, and cut power.
