LDP Electric Single-Girder Crane

PRODUCT OVERVIEW

LDP Electric Single-Girder Crane Overview

The LDP electric single-girder crane is a small, low headroom crane. The electric hoist is positioned at one side of the girder, increasing hook workspace and reducing workshop height and cost. This crane is ideal for environments with low ceiling height.

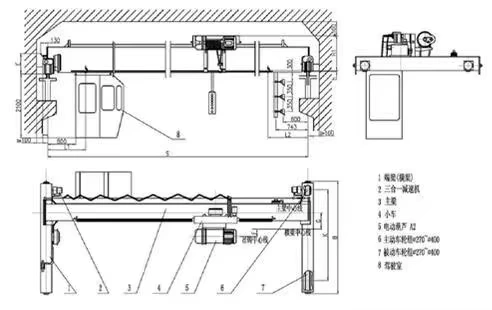

Structure: The crane has a box-shaped girder made of welded steel plates, an end girder, a crab, and a traveling mechanism. The crab includes the traveling end girder, crab frame, and fixed electric block. It is partially hung and runs on one side of the girder. The hoist is raised above the girder, increasing lifting height.

Design: The box-shaped girder has horizontal wheels on the upper and lower sides, which are safe and reliable, preventing rail wear. The crab uses a conical motor for braking and is driven by an exposed gear. The trolley features a separate drive, ensuring smooth operation.

Drive Options: The crane can be fitted with soft-start motors or variable-frequency motors for steady starts and energy savings, depending on user needs. The crane runs safely and reliably.

Operation Modes: The crane offers three control options: ground handle, wireless remote control, and a cab. The cab is available in open and closed types.

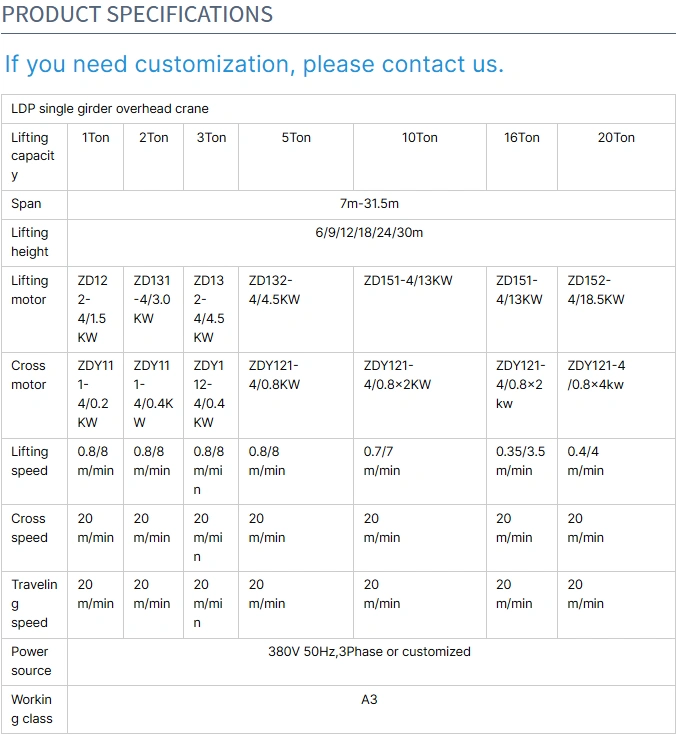

Specifications: The span ranges from 7.5m to 22.5m, with a load capacity from 3t to 10t. Custom designs are available based on user requirements. The crane operates in environments with temperatures between -25°C and 40°C and has an A3 classification group.

Key Advantages of the LDP Electric Single Girder Crane

Space-Saving & Increased Lifting Height

Partial Hang Design: The crab runs on one side of the girder, opening up space below.
Electric Hoist Above the Girder: Maximizes vertical lifting height compared to traditional underslung cranes.

Strong & Safe Construction

Steel Box Girder: High strength and durability, made from welded steel plates.
Horizontal Wheels with Bias Rails: Prevent wear and ensure smooth, stable movement.

High-Performance Crab System

Conical Motor Braking & Exposed Gear Drive: Provides precise control and reliable stopping.
Separate Drive Trolley: Reduces maintenance and increases durability.

Flexible Drive Options

Adjustable-Speed Motors: Soft-start motors or VFD for smooth, energy-efficient operation.

Multiple Operation Modes

Ground Handle: Manual control option.
Wireless Remote Control: Greater operator flexibility and safety.
Cab Options: Open or closed cabs for various work environments.

Customizable for Hazardous Environments

Acid-Proof & Explosion-Proof: Available for use in chemical plants, mining, or oil & gas industries.

Advanced Safety Features

Overload Limiter: Protects against overloading.
Limit Switches: Automatically stops lifting/traveling to avoid damage.
Interlock Protection: Ensures safe operations.

Easy Installation & Global Support

On-Site Installation: Guidance from expert engineers.
Worldwide Training & After-Sales Service: Support around the globe.

Why Choose This Crane Over Competitors?

Higher Lifting Height: Perfect for low-clearance facilities.
Space Efficient: Partial hang design saves floor space.
Smoother Operation: Conical motor braking and VFD options ensure smooth operation.
Durable Construction: Box girder and bias rails resist wear and deformation.
Versatile Controls: Options for remote, cab, or pendant controls.

Why Choose This Crane?

Higher Lifting Height: Ideal for low-clearance areas.
Space-Efficient: Partial hang design saves floor space.
Smoother Operation: Conical motor braking and VFD reduce jerks.
Durable Construction: Box girder and bias rails resist wear and deformation.
Versatile Controls: Remote, cab, or pendant options fit any workflow.

APPLICATION SCENARIO

The LDP Electric Single-Girder Crane is a compact and low-headroom crane, designed for spaces with limited vertical clearance. The side-mounted hoist maximizes hook workspace while reducing the required ceiling height. This makes it ideal for various applications, including:

Applications:

Warehouses & Logistics Centers
Efficiently moves pallets, crates, and heavy packages in tight spaces. Ideal for low-clearance racking systems, maximizing vertical storage.
Manufacturing Workshops
Handles raw materials, parts, and assembly line components in small production areas. Perfect for automotive, metalworking, and textile factories with low ceilings.
Small & Medium-Sized Workshops
A cost-effective solution for garages, repair shops, and fabrication units with height restrictions. Lifts safely without needing expensive building modifications.
Food & Beverage Processing Plants
Moves materials in low-ceiling environments, like packaging lines and cold storage. Customizable with stainless steel or anti-corrosion coatings for wet or cleanroom areas.
Power Stations & Utility Rooms
Maintains and installs transformers, generators, and electrical panels in tight spaces. Operates safely around overhead pipes, ducts, and HVAC systems.
Retail & Wholesale Distribution Centers
Loads and unloads goods in small backrooms or mezzanine floors with limited headroom.
Mining & Chemical Plants (Custom Versions)
Available in explosion-proof and acid-resistant models for hazardous environments.

Why Choose the LDP Single-Girder Crane?

✔ Space-Saving Design – Side-mounted hoist increases hook workspace and saves floor space.
✔ Cost-Effective – No need for high ceilings, reducing building and maintenance costs.
✔ Flexible Installation – Fits easily into existing low-clearance buildings.
✔ Energy Efficient – Uses less power, lowering long-term operating costs.

The LDP Electric Single-Girder Crane offers a space-efficient and cost-saving solution for various industries. Its flexible design and low maintenance make it a valuable tool for environments with height limitations.
